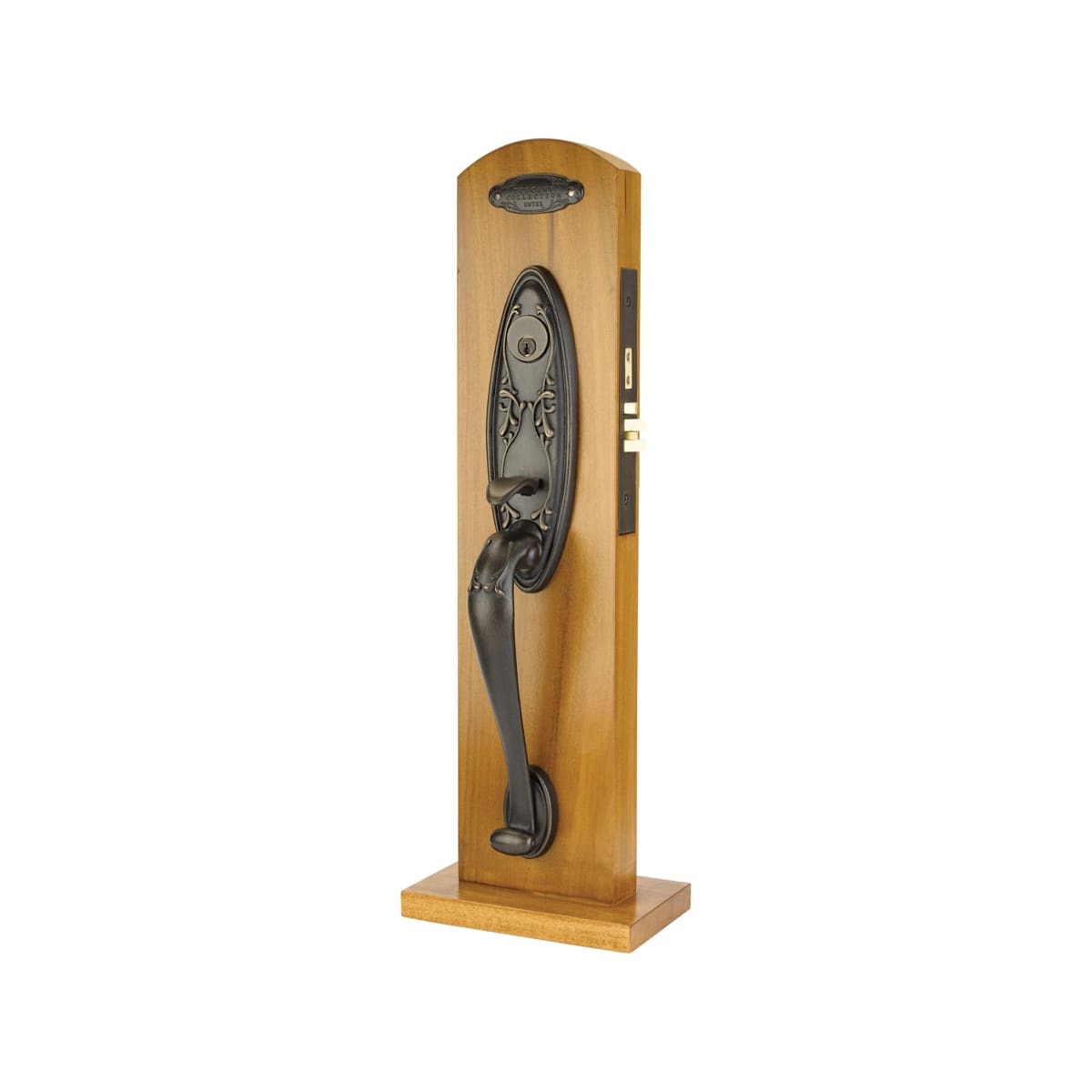

Create NowDa Vinci Mortise Entry Set
Customize this product with your perfect style and finish combinations for both sides of your door.
Mortise Entry Set
Available Functions
- F13 Mortise
- Dummy
- F20 Mortise
- 2-1/2" or 2-3/4" backsets
- Standard mortise door prep ANSI A115.1
- UL Listed mortise with ANSI F20 or F13 function
- Schlage C keyway
- Handing required for all mortise locks
Specifications
- Mortise-Entry-Sets_EM_Instructions.pdf
- Emtek Mortise Lock Functions
- EMTEK Dummy Mortise Lock Installation Instructions
- EMTEK UL Mortise Lock Installation Guide - F13 Function
- EMTEK UL Mortise Lock Installation Guide - F20 Function
- EMTEK Dummy Mortise Lock Installation Instructions - Trilingual
- EMTEK Dummy Mortise Lock Door Prep - Right Hand
- Rustic-Modern-Rectangular_EM_Instructions3.png
- EMTEK Dummy Mortise Lock Door Prep - Left Hand
- Rustic-Modern-Rectangular_EM_Instructions4.png
MORTISE ENTRY SETS
Emtek’s heavy duty mortise lock boxes include:
- UL Listed mortise door prep ANSI A115.1
- 180 minute fire rating
- Deadlocking latch bolt
- Forged deadbolts with anti-saw inserts
- Anti-pick security latches
- Anti-friction triggers
- Stop and release buttons in the F20 function option
- Function (F13 or F20), backset length and handing are required on all mortise lock orders
EUROPEAN TRADITIONS
Capture your own piece of the Italian countryside with Tuscany Bronze-inspired, Lost Wax designs!
Rooted in an ancient practice in which a bronze sculpture is cast from a wax model. The wax model is dipped in a slurry of silica, then more ceramic material is added, creating thick walls around the template.
At this point, the wax is melted out of the ceramic and you are left with an empty ceramic mold. Molten bronze is then poured into the ceramic mold, creating a bronze reproduction of the original wax model.
